Features:
The Sloppy Stage 2 Camshaft is a cam with a fairly aggressive profile. It will have a nice Lopey Idle and make tons of power all while keeping costs low. This cam is a great choice for those daily drivers that like a nice Lopey/Choppy idle. Great for Cars, Trucks, SUV's, Street Rods, and LS Swaps. There is no hiding this cam as will will have a muscle car sounds to it. Everyone will take note of this street warrior. Automatic's will perform best with a 2,600-2,800 Stall Converter.
Specifications:

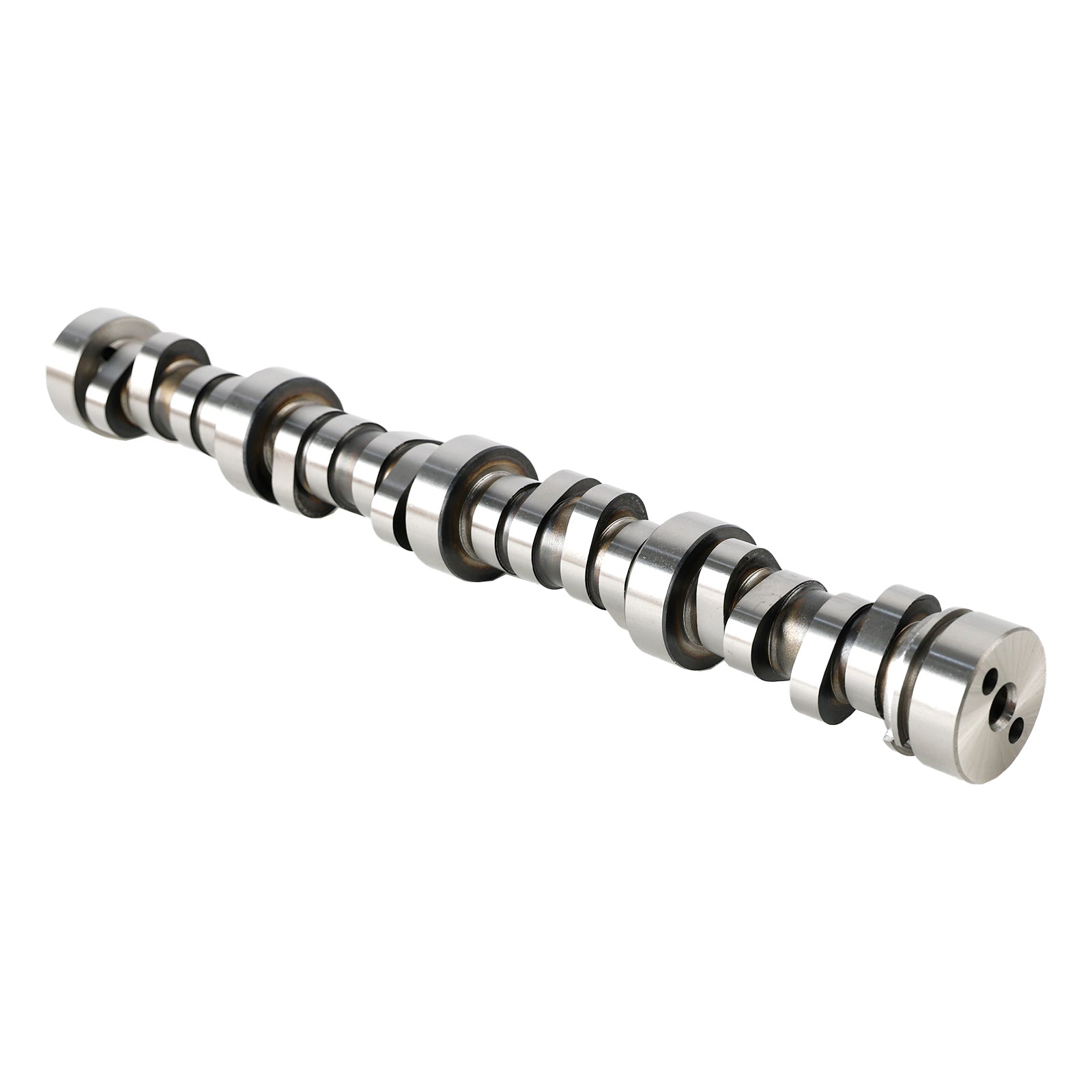

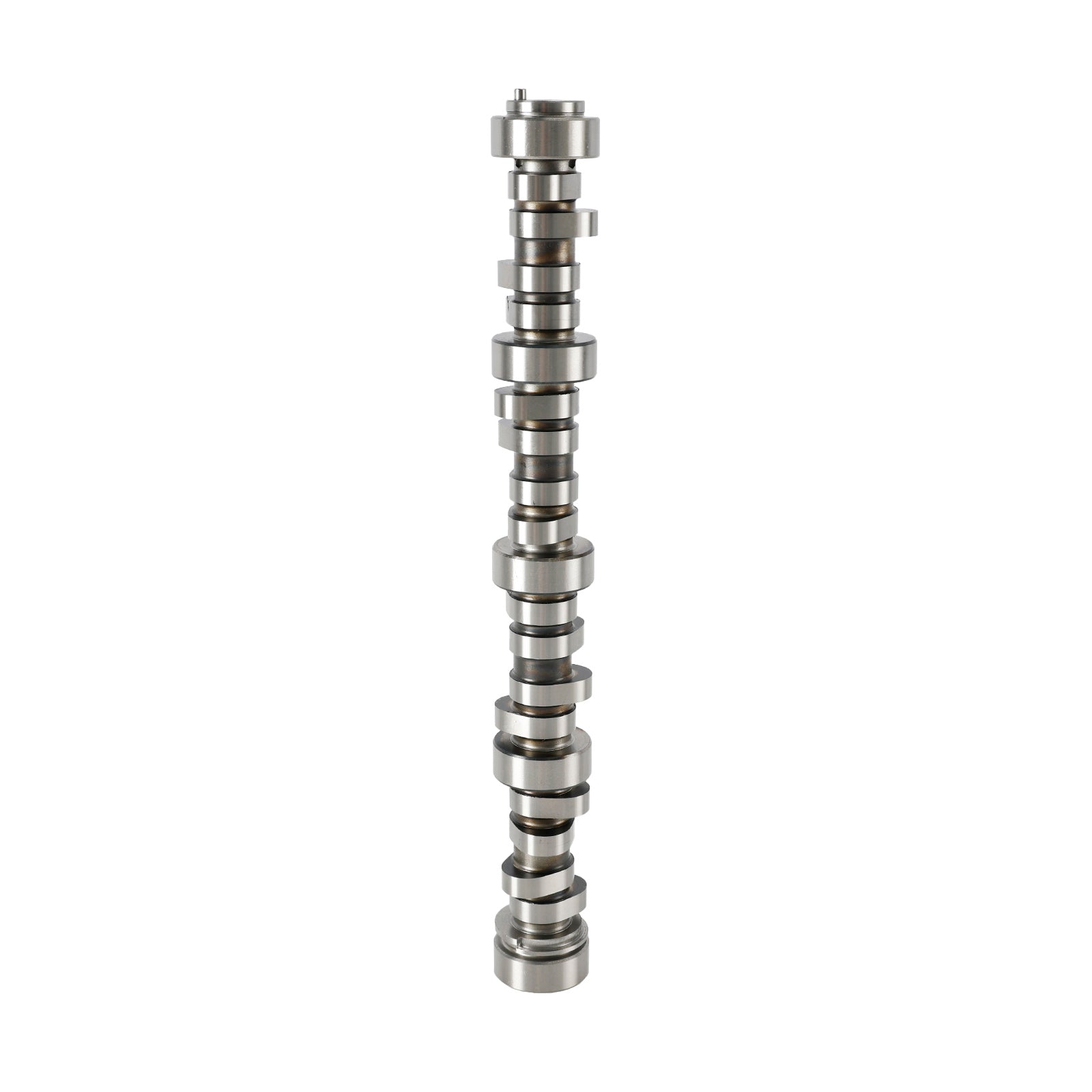

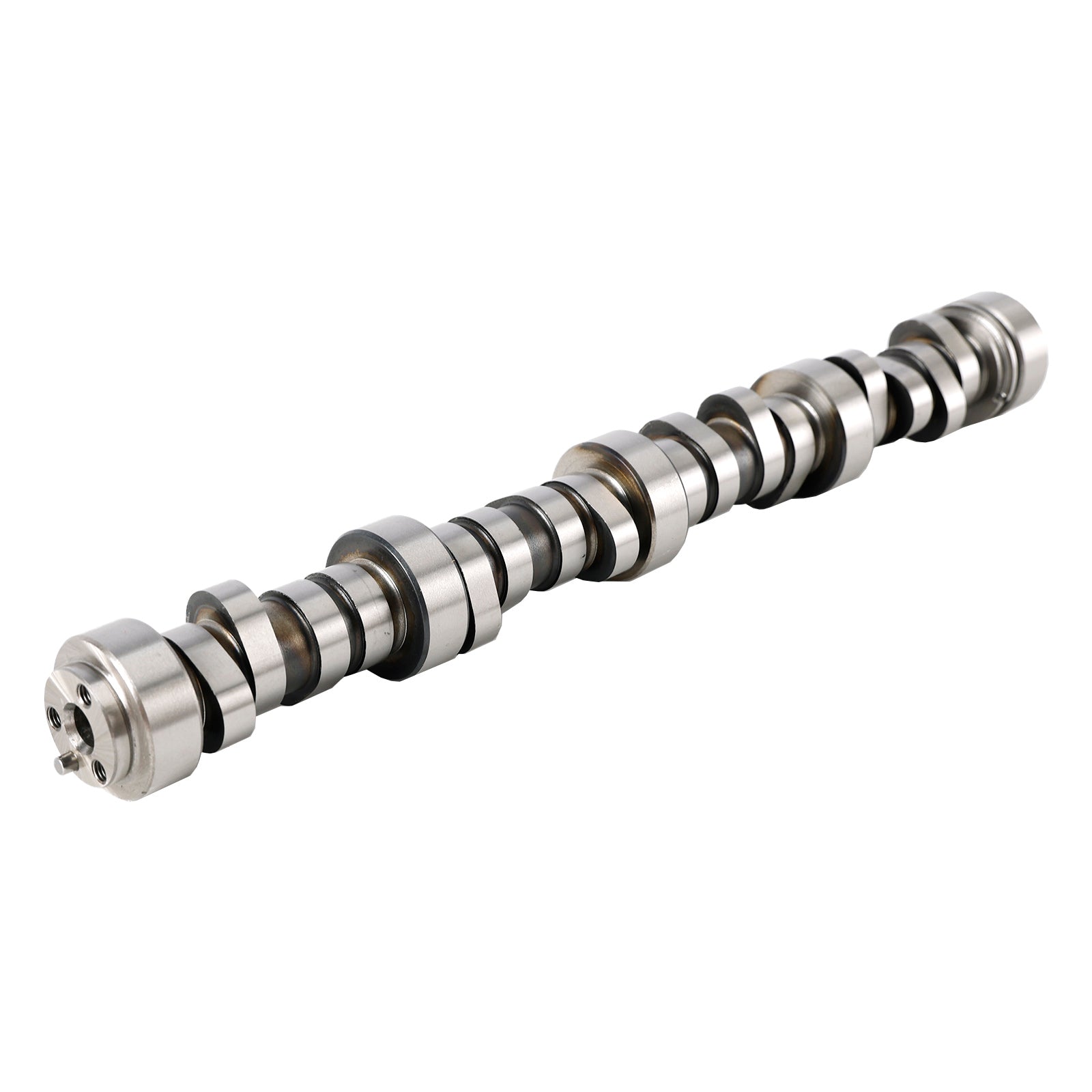

1. Camshaft Compatibility:
for Chevy LS-Series Engine 1997-Up
Not for use with AFM/DOD
Camshaft RPM Range: 2200 to 5400 RPM
Camshaft Intake Valve Lift: .585"
Camshaft Exhaust Valve Lift: .585"
Camshaft Advertised Intake Duration: 283°
Camshaft Advertised Exhaust Duration: 286°
Camshaft Intake Duration at .050": 228°
Camshaft Exhaust Duration at .050": 230°
Camshaft Lobe Separation: 112°
Camshaft Intake Centerline: 108°
Camshaft Cam Gear Attachment: 3-Bolt

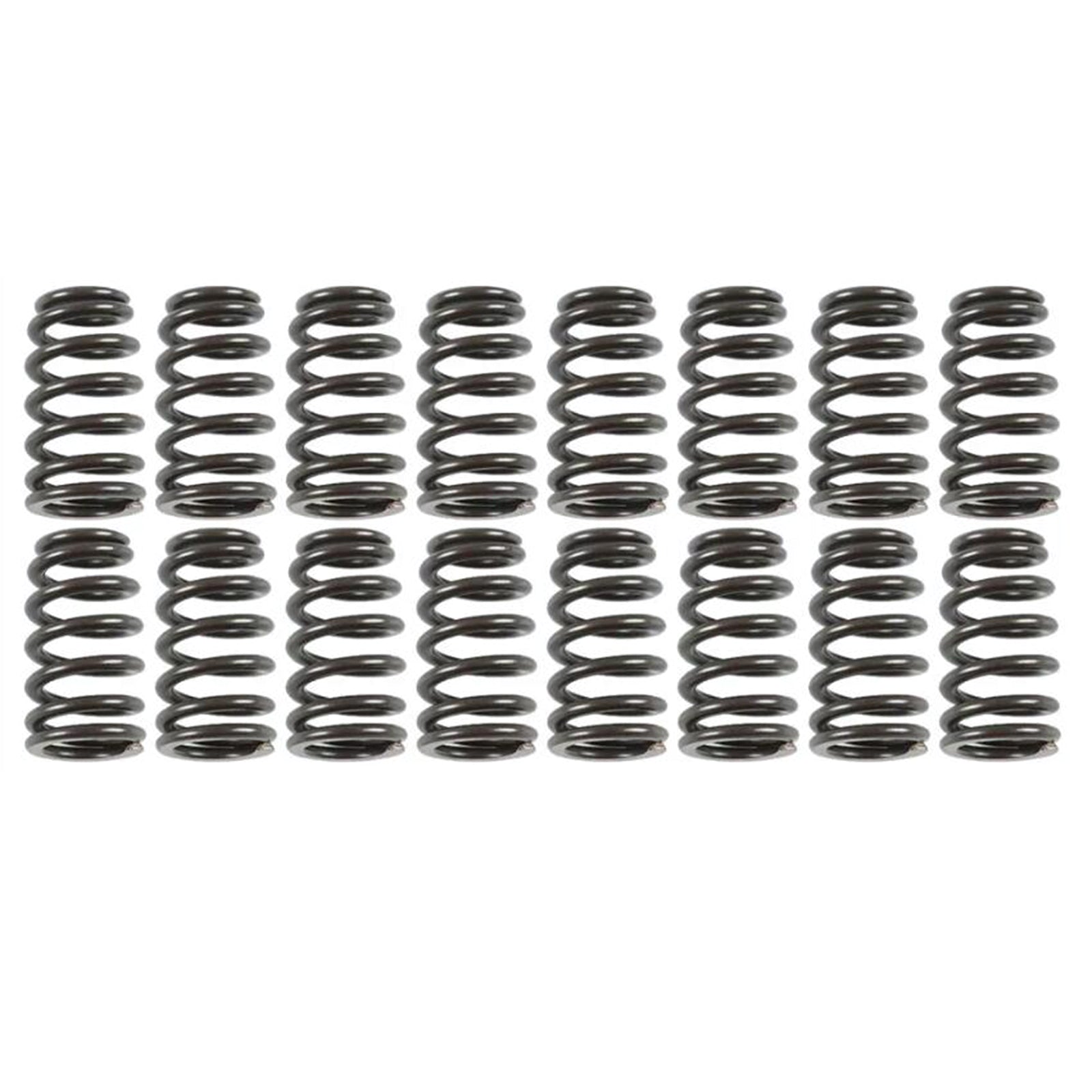

2. Number of Springs Per Valve: Single
Outside Diameter of Outer Spring (in): 1.290 in.
Spring Coil Bind Height (in): 1.140 in.
Damper Spring Included: No
Spring Install Load: 130lbs
Spring Install Height: 1.800"
Spring Open Height: 1.175"
Spring Open Load: 318 lbs
Spring Rate (lbs/in): 313 lbs./in.
Inside Diameter of Outer Spring (in): 0.885 in.
Valve Spring Style: Beehive

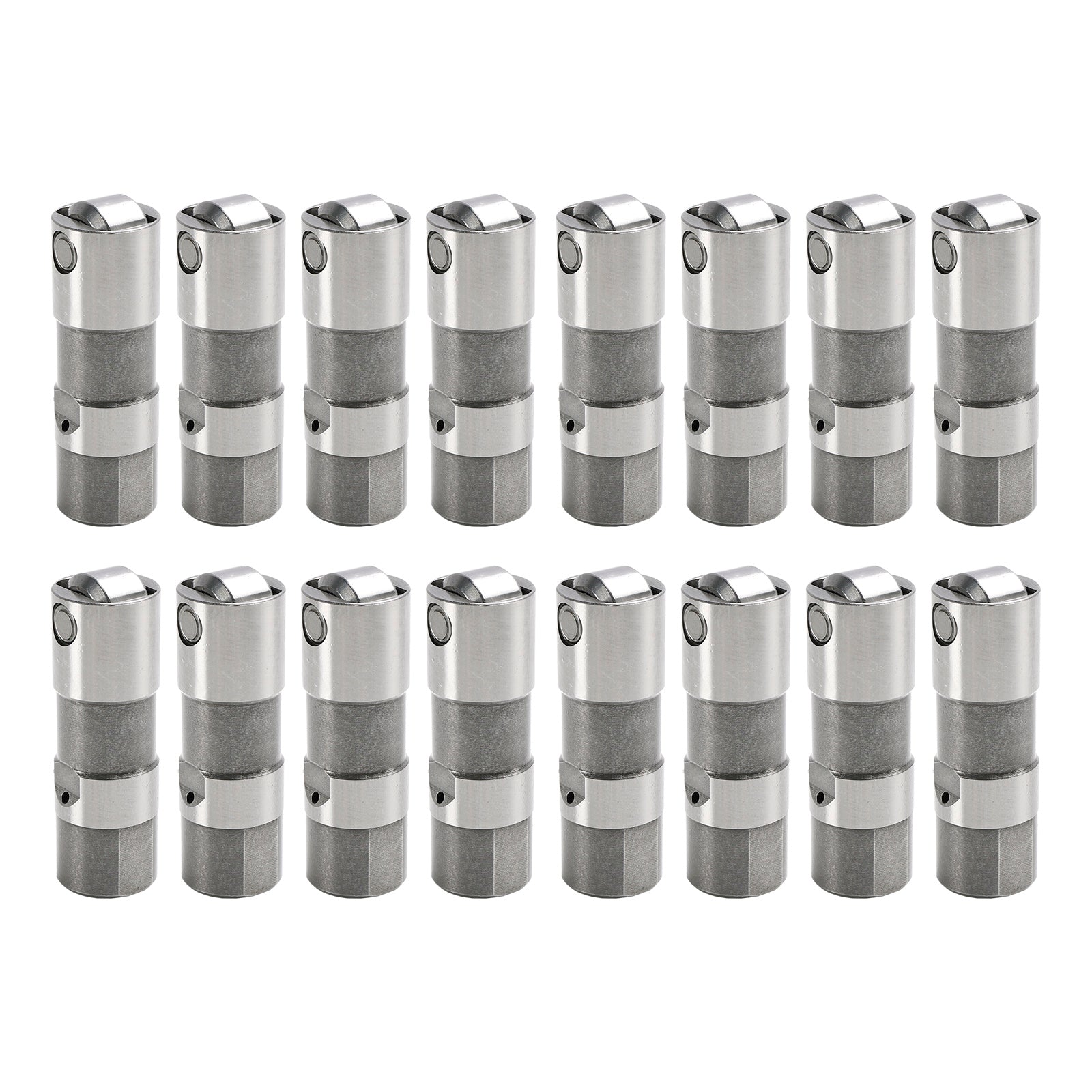

3. Set of 16 Elgin Roller Lifters for 1997-2015 Chevy/GM LS Series Factory Roller applications without Active Fuel Management.
Fitment:
Fits for 1999-2012 Trucks/SUVs 4.8L V-8 VIN-V,C,A
Fits for 1999-2007 Trucks/SUVs 5.3L V-8 VIN-T,Z,B
Fits for 1997-2004 5.7L LS1 V-8
Fits for 2001-2005 5.7L LS6 V-8
Fits for 1999-2010 Trucks/SUVs 6.0L V-8 VIN-U,K
Fits for 2005-2009 6.0L LS2 V-8
Fits for 2008-2013 6.2L LS3 V-8; without AFM
Fits for 2006-2013 7.0L LS7 V-8
Also fit for Factory Roller 93-97 LT1, and 305-350 Chevy Engines.

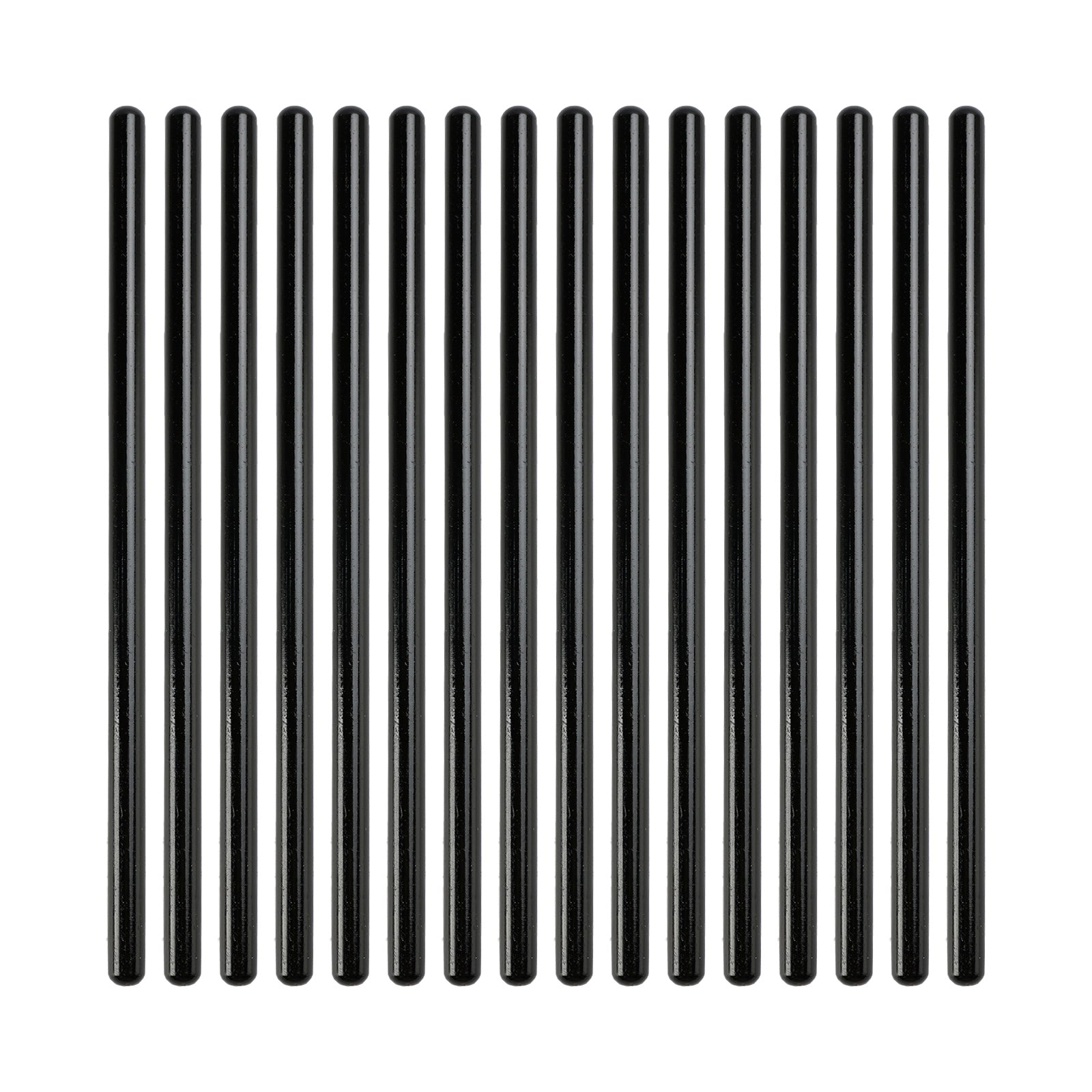

*4 putters
5/16" DIAMETER - 7.400" LENGTH - .080 WALL THICKNESS

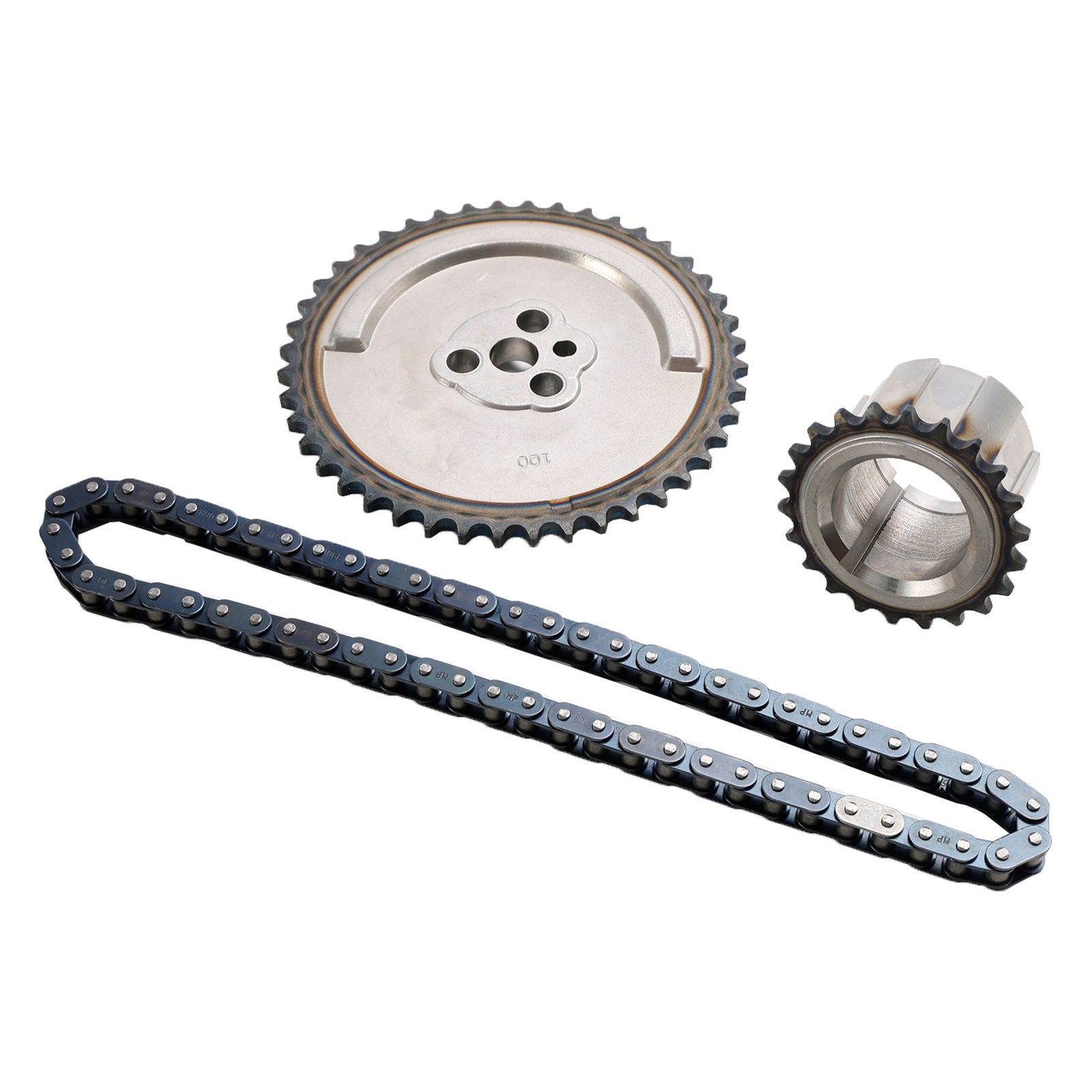

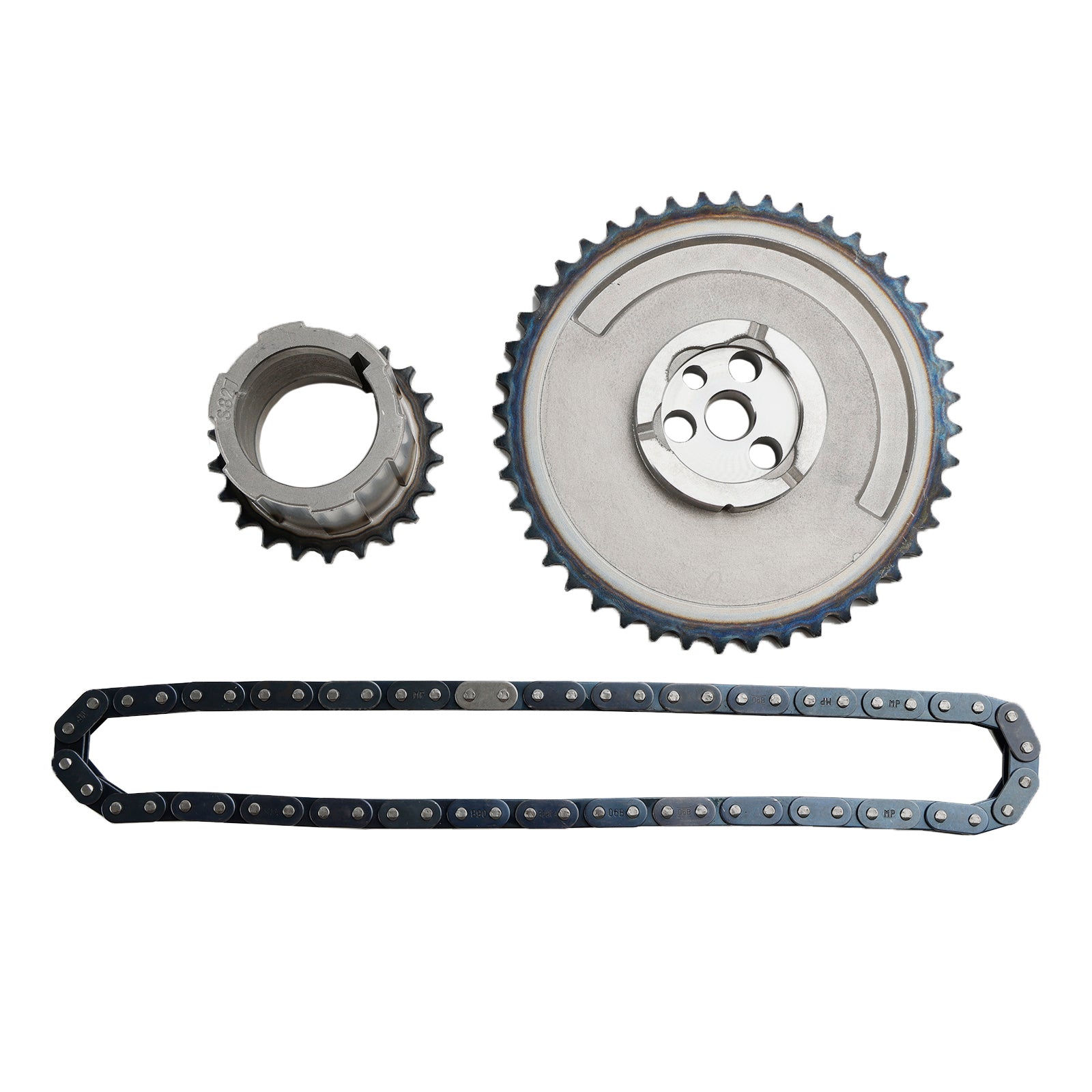

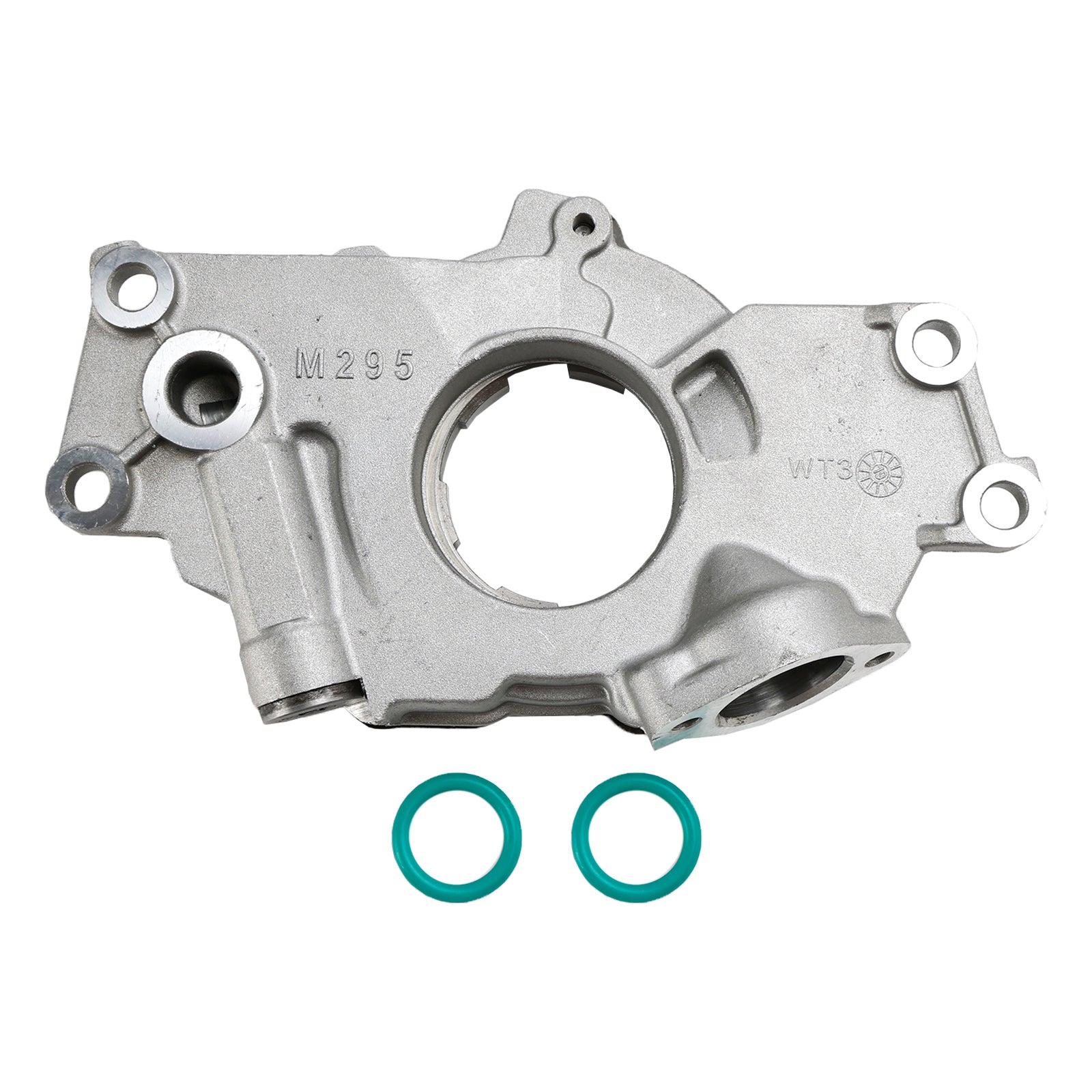

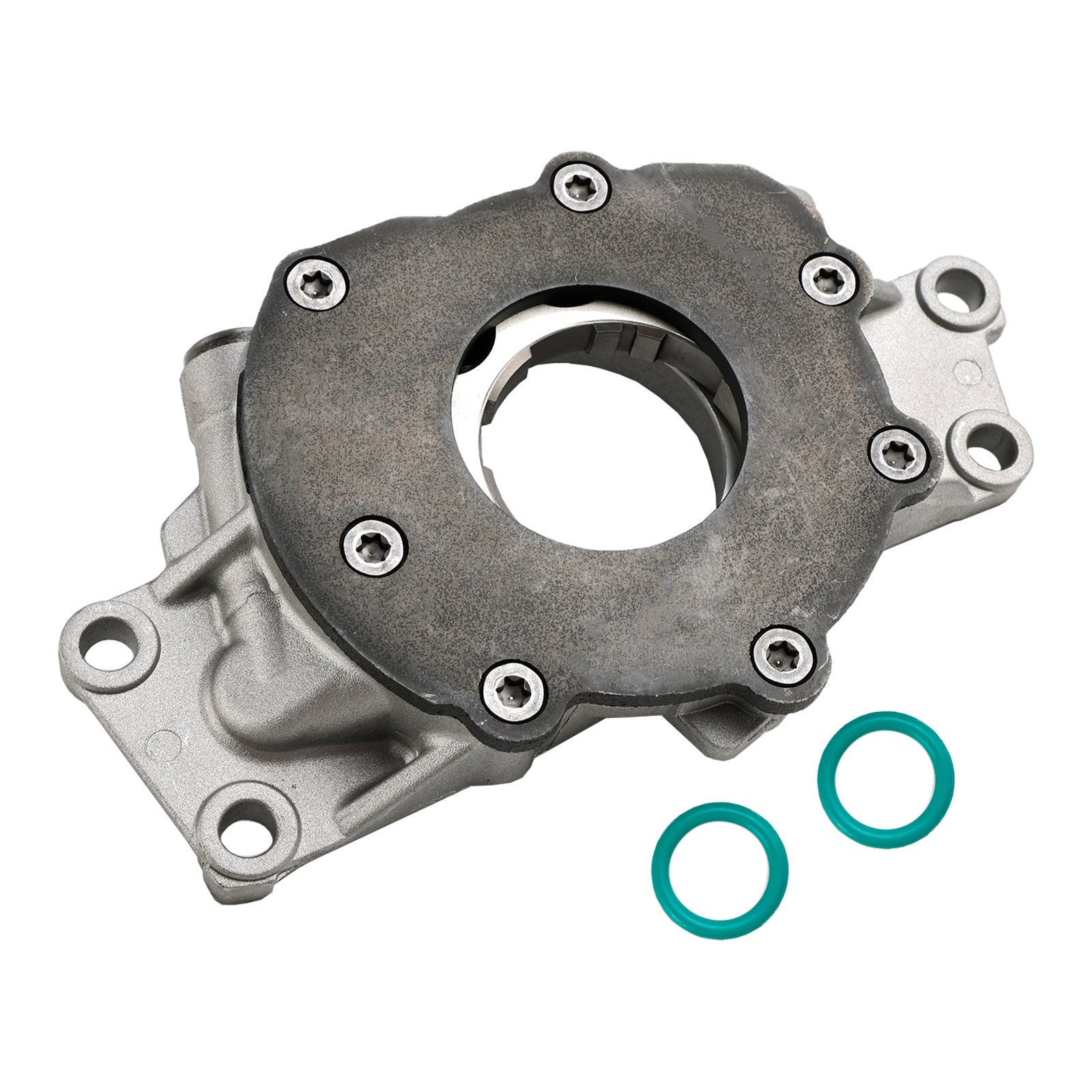

*5 M295(12586665) Oil Pump Timing chain

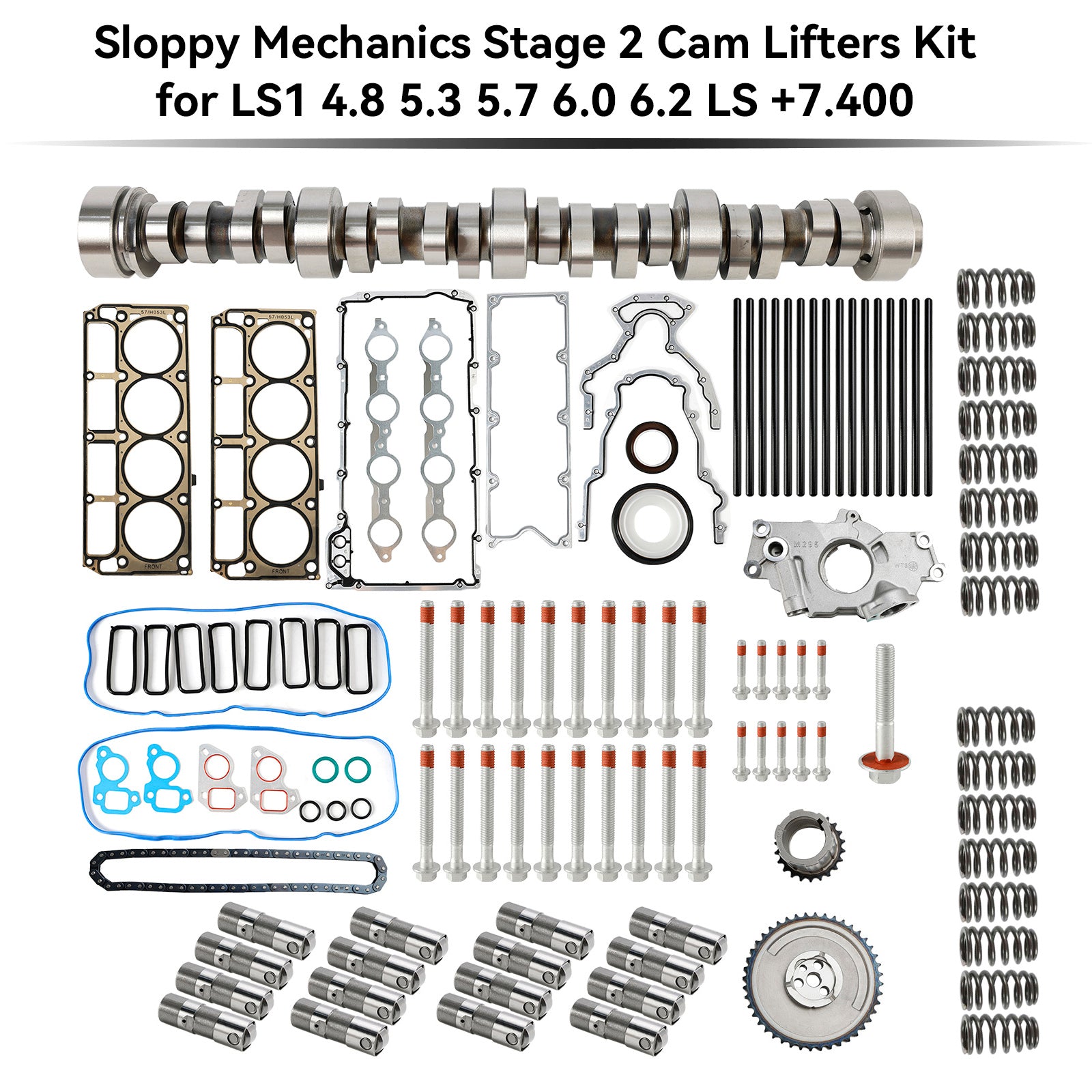

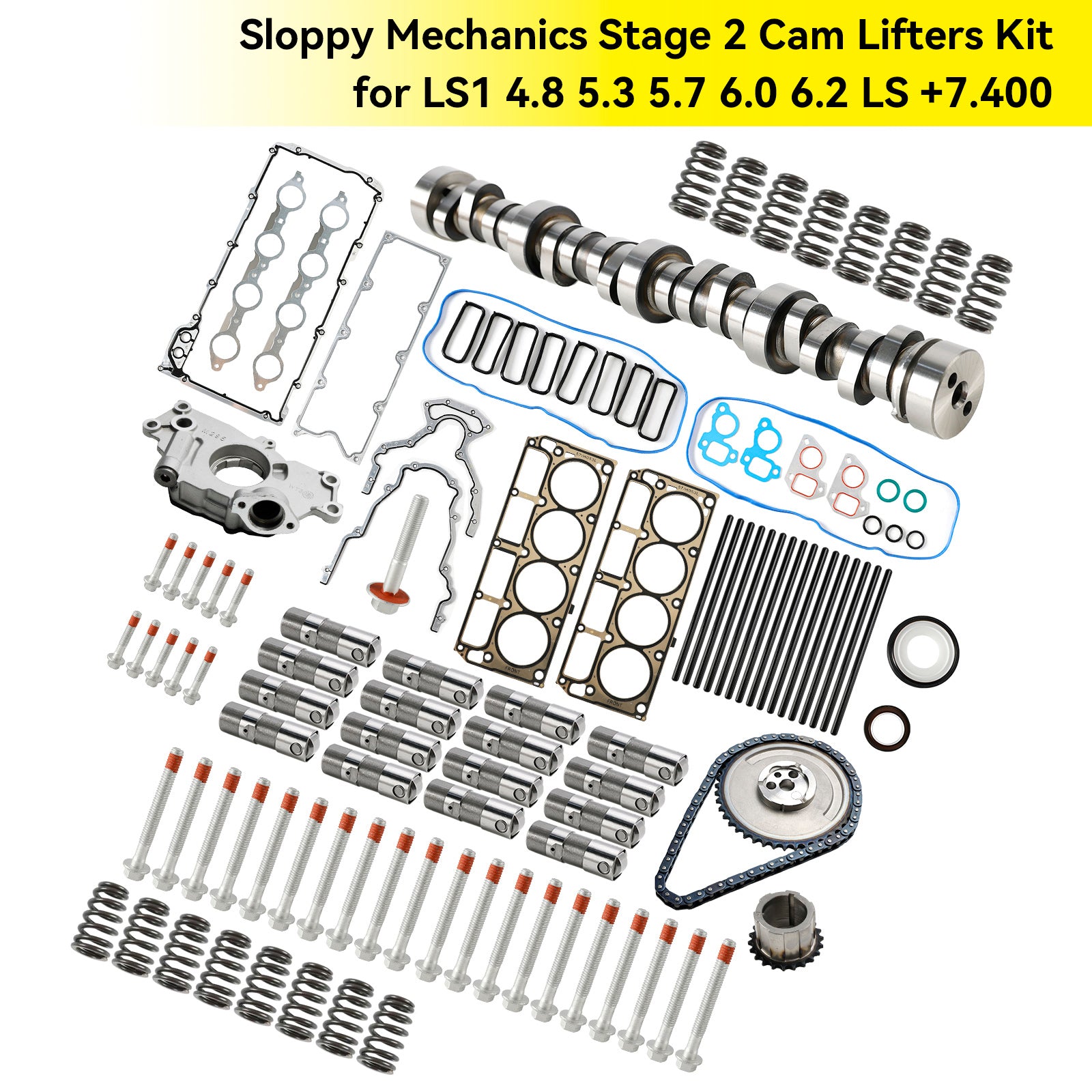

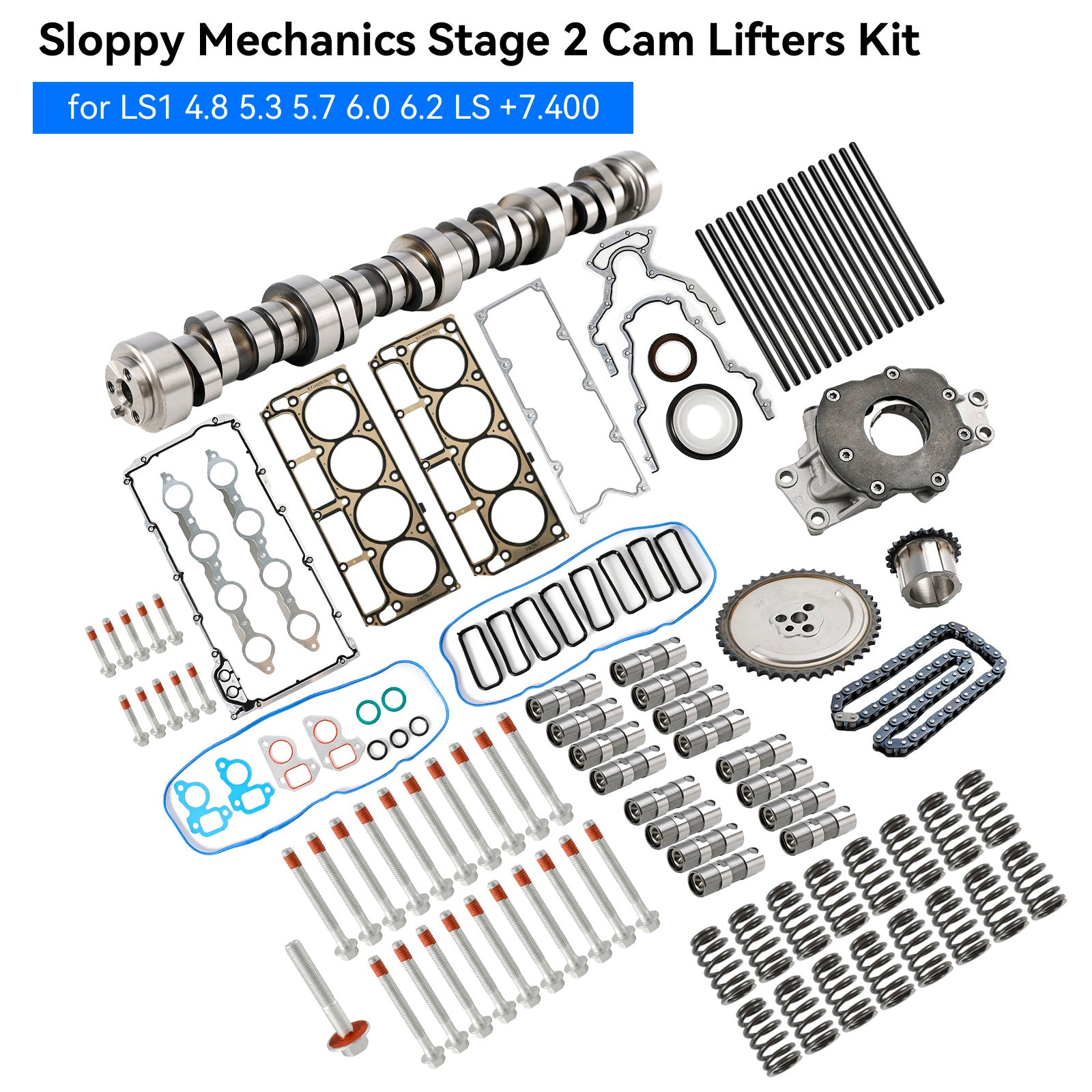

Package includes:

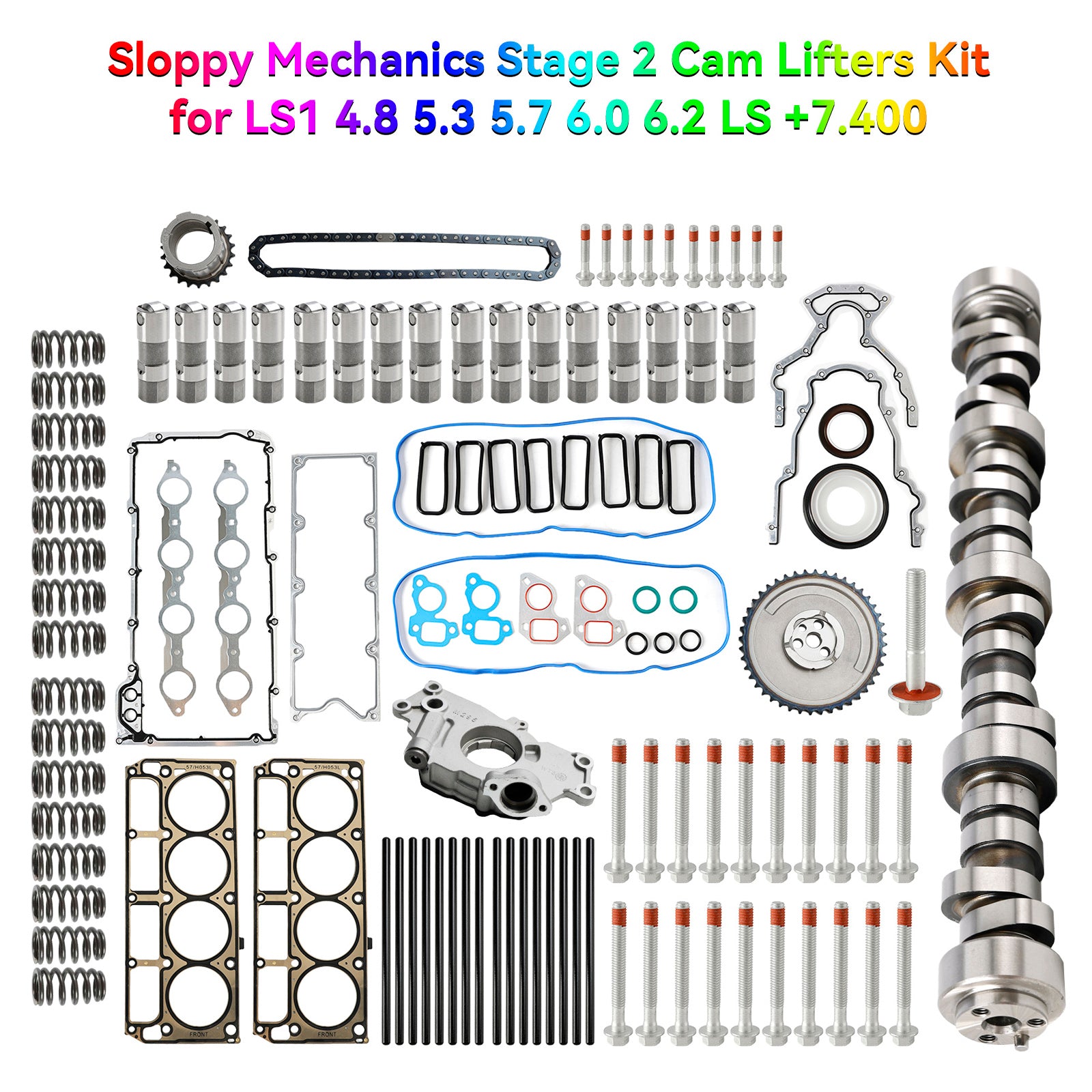

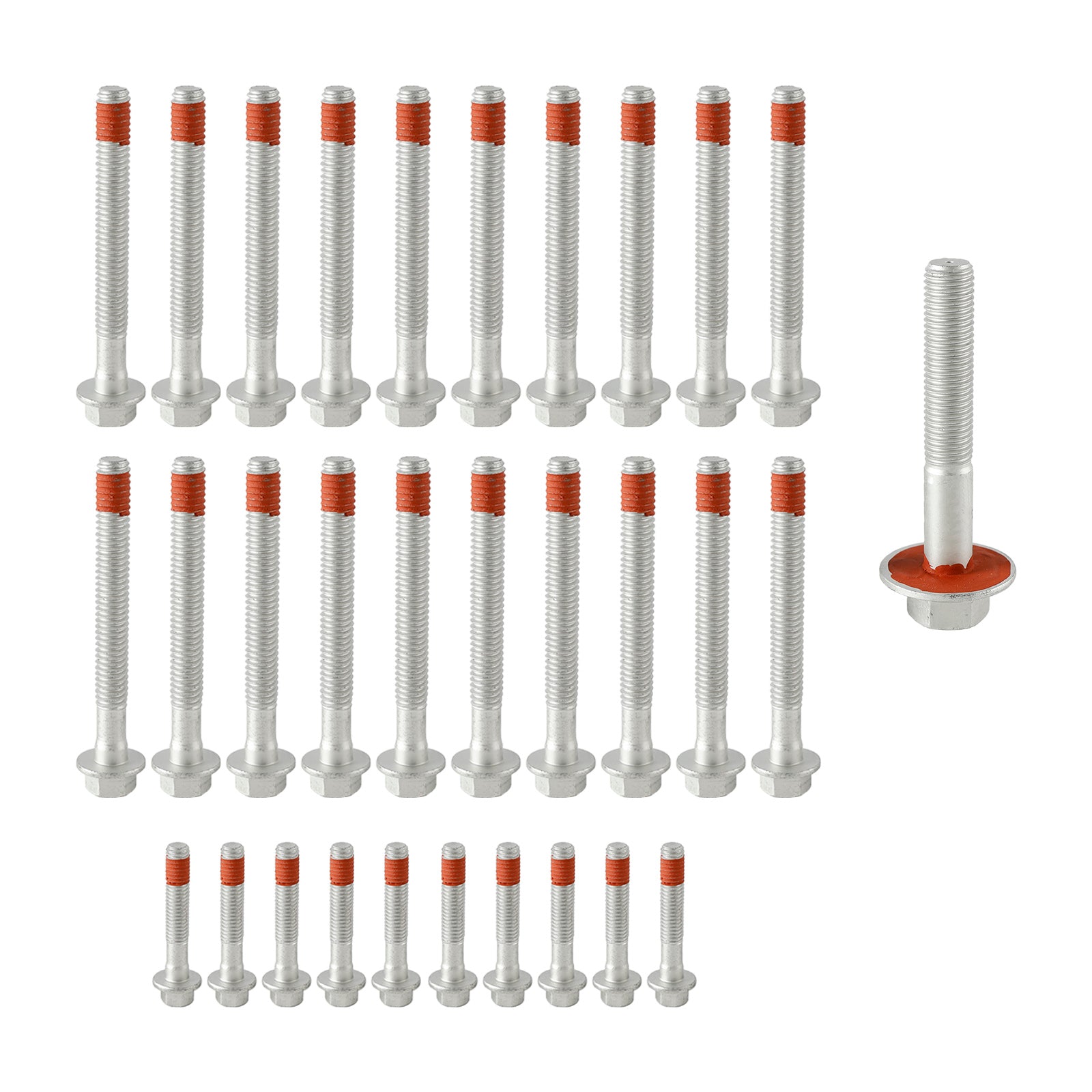

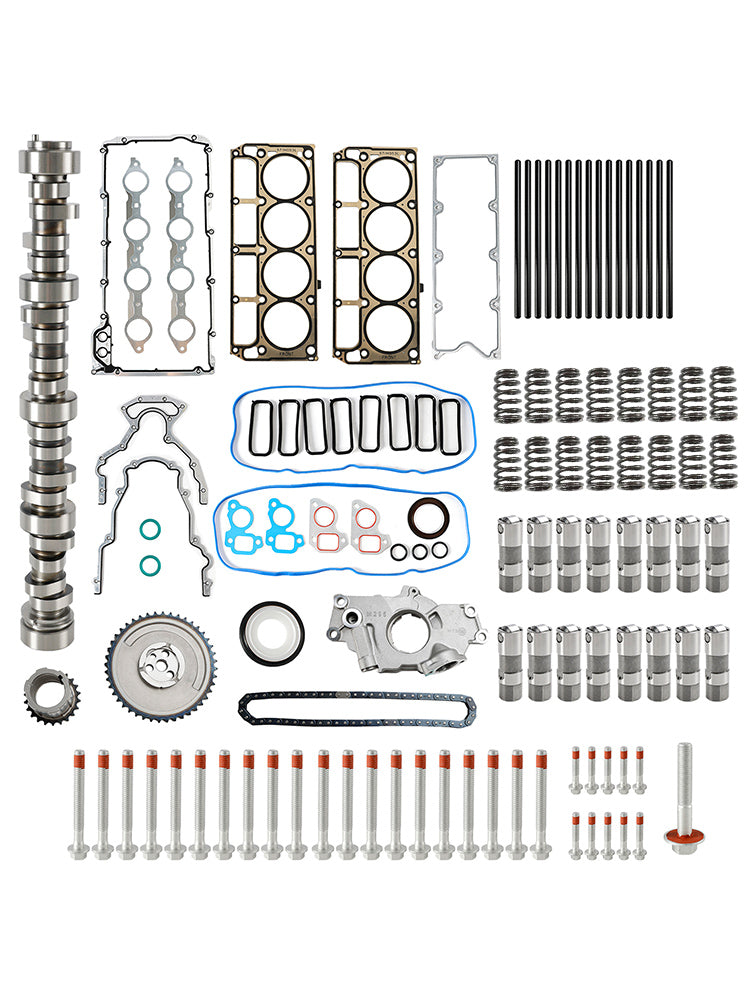

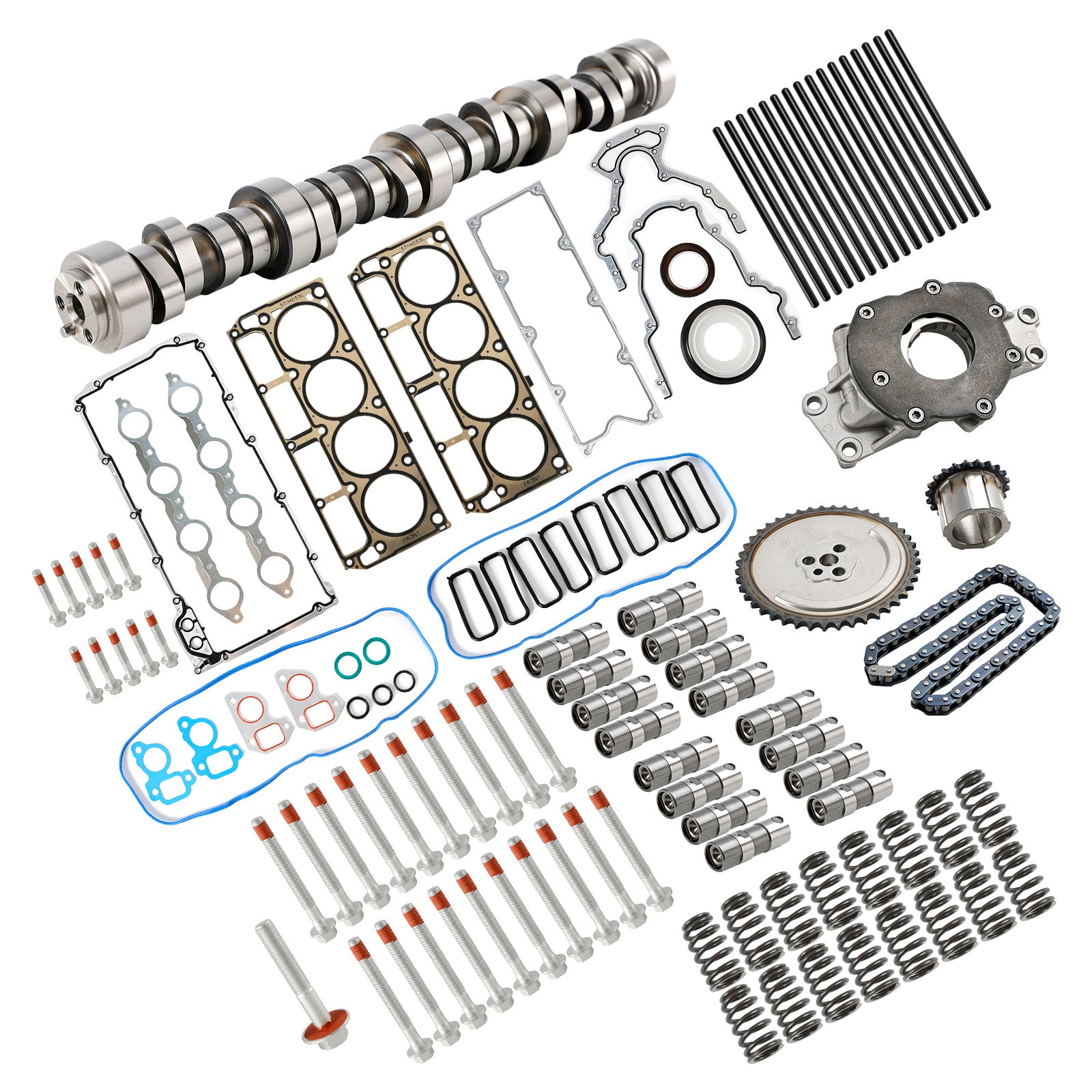

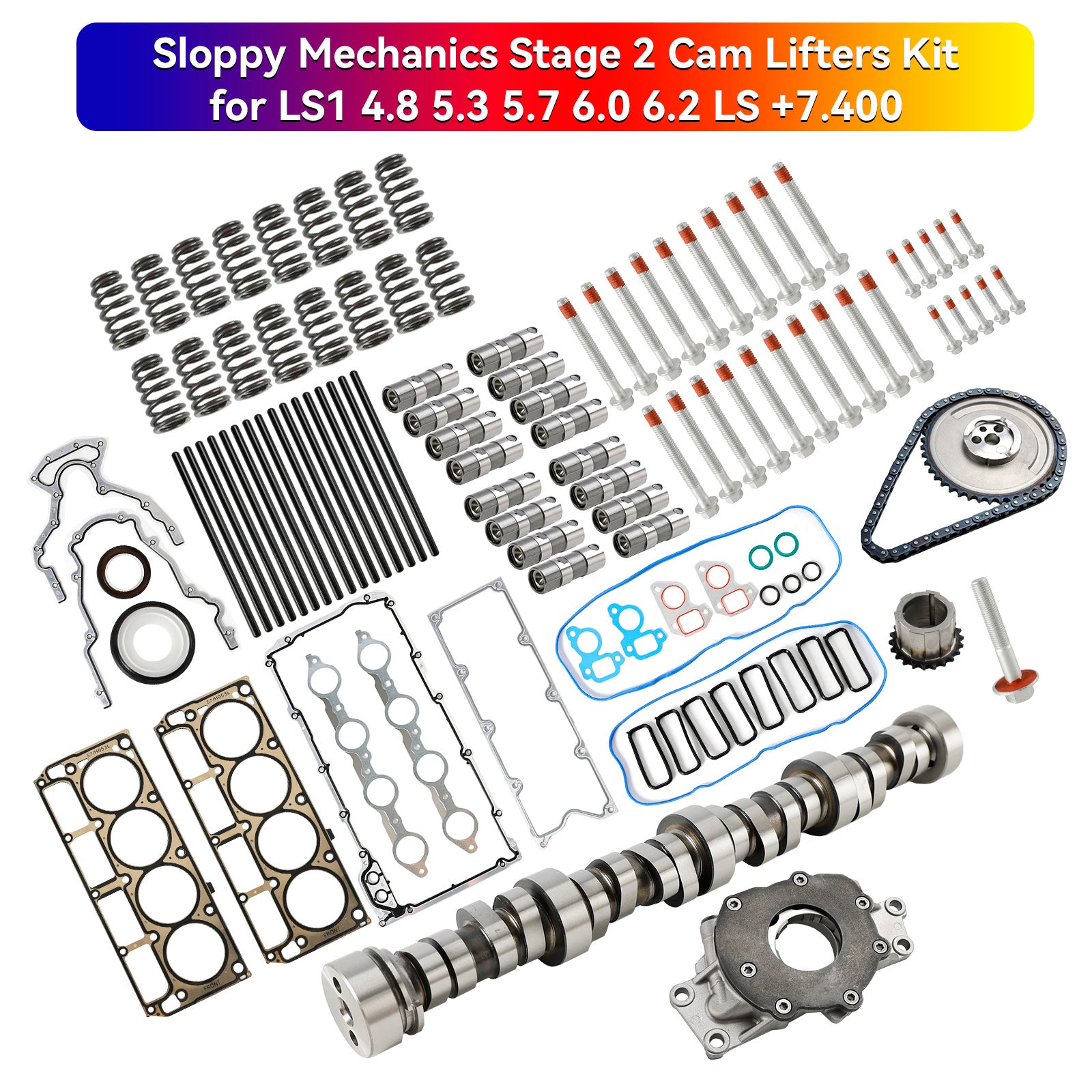

Camshaft + Valve Lifter + Push Rod: Camshaft + Screw Set + Spacer Set with 16 Valve Lifters and 16 Valve Lifters+16 putters+Oil Pump+Timing chain
Note:
Professional installation is highly recommended
Please check the interchange part number before you purchase
Please refer to the listing pictures for an accurate description of the parts included in the kit
Shipping Information:
Free Quick Shipping
Delivery Time: 3-7 business days.
The best thing about this kit is that it packages the camshaft, tappets, and chain without having to order separate pieces.
Original camshafts are worn, local garage quoted at least a thousand dollars.
A familiar mechanic friend recommended I purchase this part. The results have been excellent! Solved the problem and saved a ton of money.
After replacing this repair kit myself the engine was immediately quieter and the annoying clicking noise finally went away!
Improved power output and a more powerful engine sound.
Improved engine performance, definitely a good choice to enhance the driving experience.A+++
