Features:
[Wide Application] - Compatible With GM Chevy 1997-2007 LS L92 L99 5.3L 5.7L 6.0L 6.2L V8 LSX Sloppy Stage 2, And ,5/8" Hole On Vertical Stop Compatible With LS Sloppy Stage 2 4.8 5.3 6.0 6.2,585" Lift 286°Duration.
[Intake & Exhaust] - Valve Lift: .585"/ .585" (1.7 Rockers); Advertised Duration: 283°/ 286° (@ .050": 228°/230°).
[Specifications] - RPM Range: 2200 To 5400; Lobe Separation: 112°; Intake Center-Line: 108°; Cam Gear Attachment: 3-Bolt.
[Not Require Tuning] - The Hydraulic Roller Sloppy Stage 2 Camshaft is More Than Oem Standard, Directly Replace The Old One.
[Not Suitable For AFM] - Please Check And Ensure The Fitment Before Order.
Specifications:

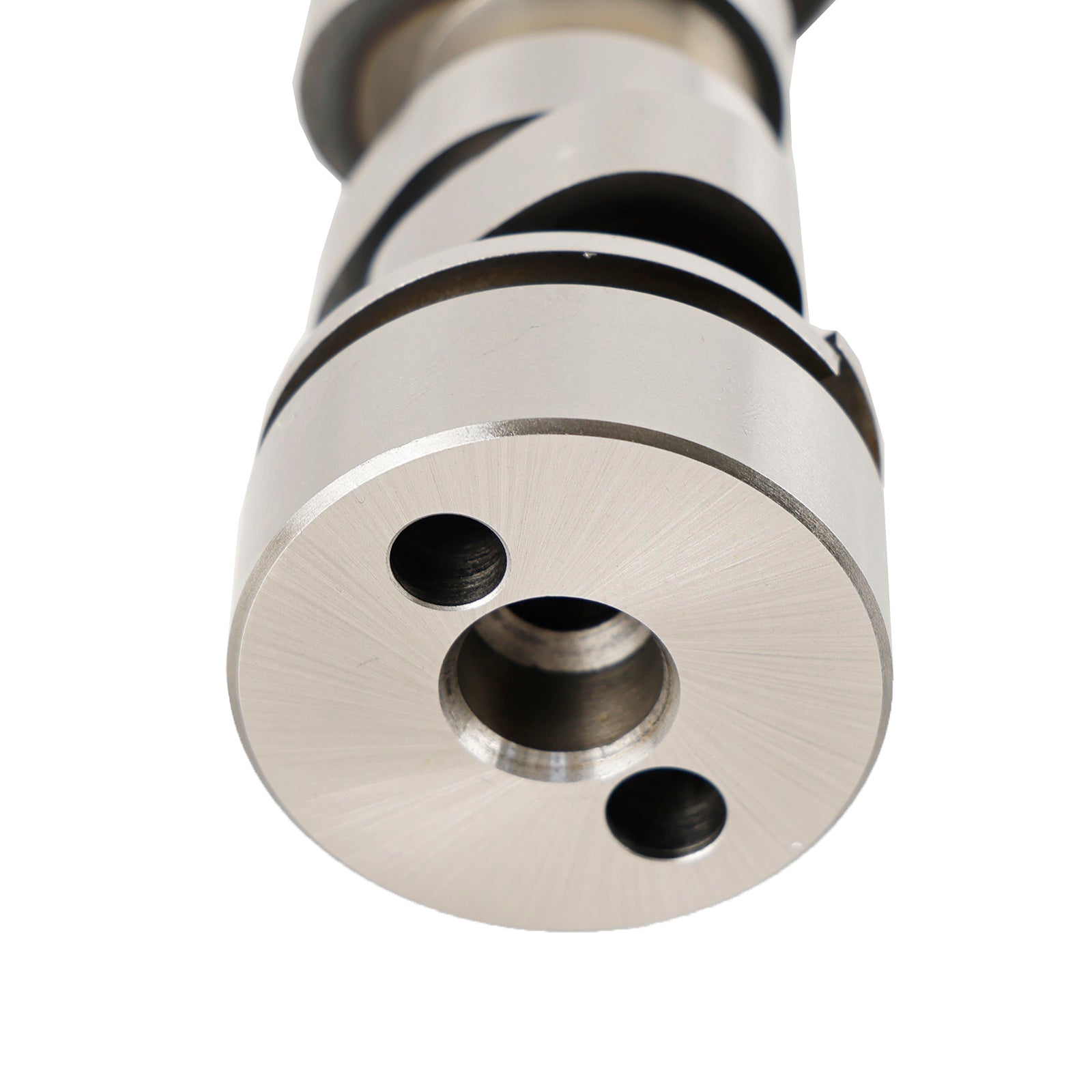

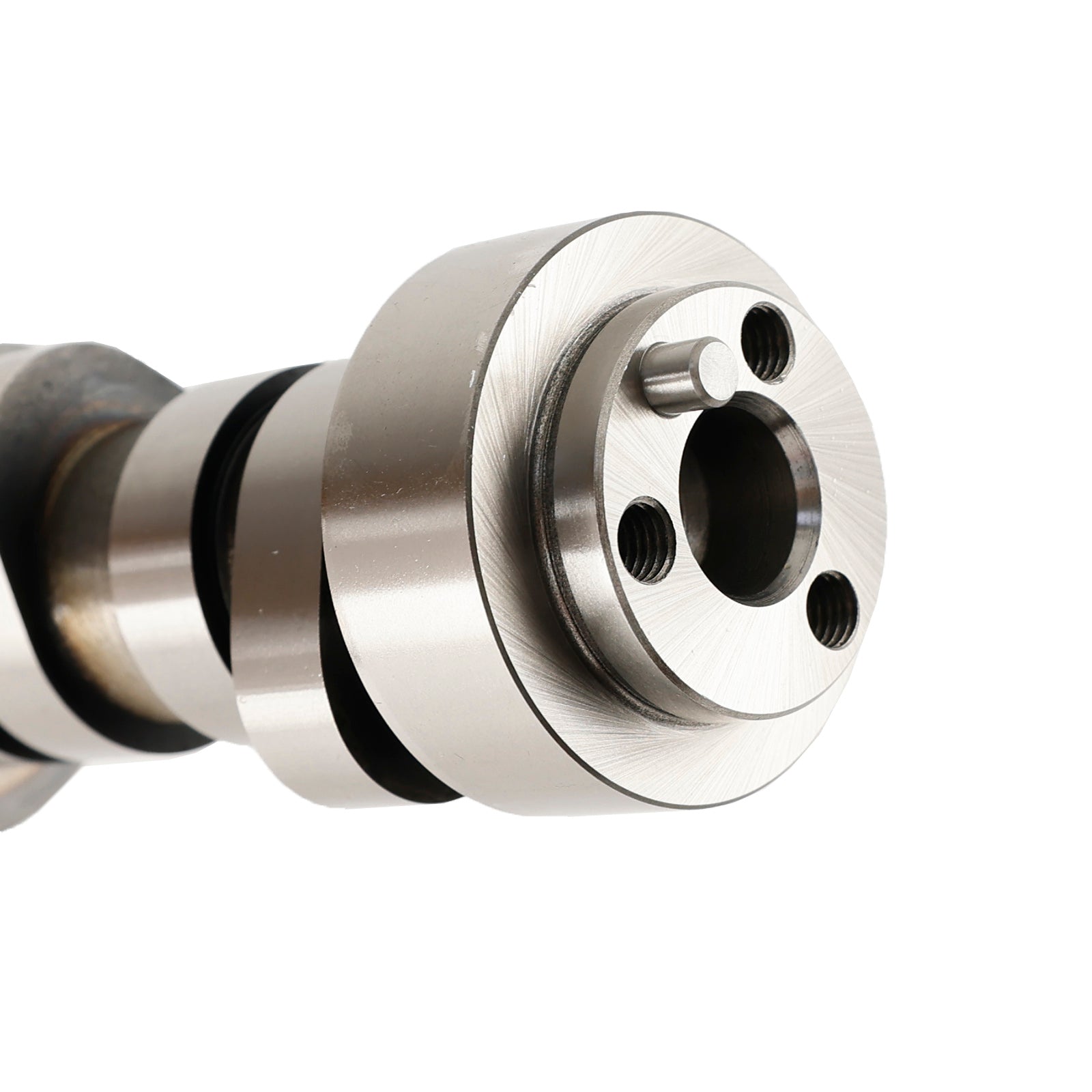

E-1840-P Engine Camshaft For GM Chevy
Engine Type: LS-Series
Camshaft Type: Hydraulic Roller
Intake Duration: @ .050": 228°
Exhaust Duration: @ .050": 230°
Intake Valve Lift: .585"
Exhaust Valve Lift: .585"
Lobe Separation: 112°
Intake Centerline: 108°
Advertised Intake Duration: 283°
Advertised Exhaust Duration: 286°
16Pcs PAC-1218 Drop-In Valve Springs:
Outside Diameter Of Outer Spring (IN): 1.290 IN.
Coil Bind Height (IN): 1.140 IN.
Damper Spring Included: No
Install Load: 130LBS
Install Height: 1.800"
Open Height: 1.175"
Open Load: 318 LBS
Spring Rate (LBS/IN): 313 Lbs./In.
Inside Diameter Of Outer Spring (IN): 0.885 In.
Pushrods:

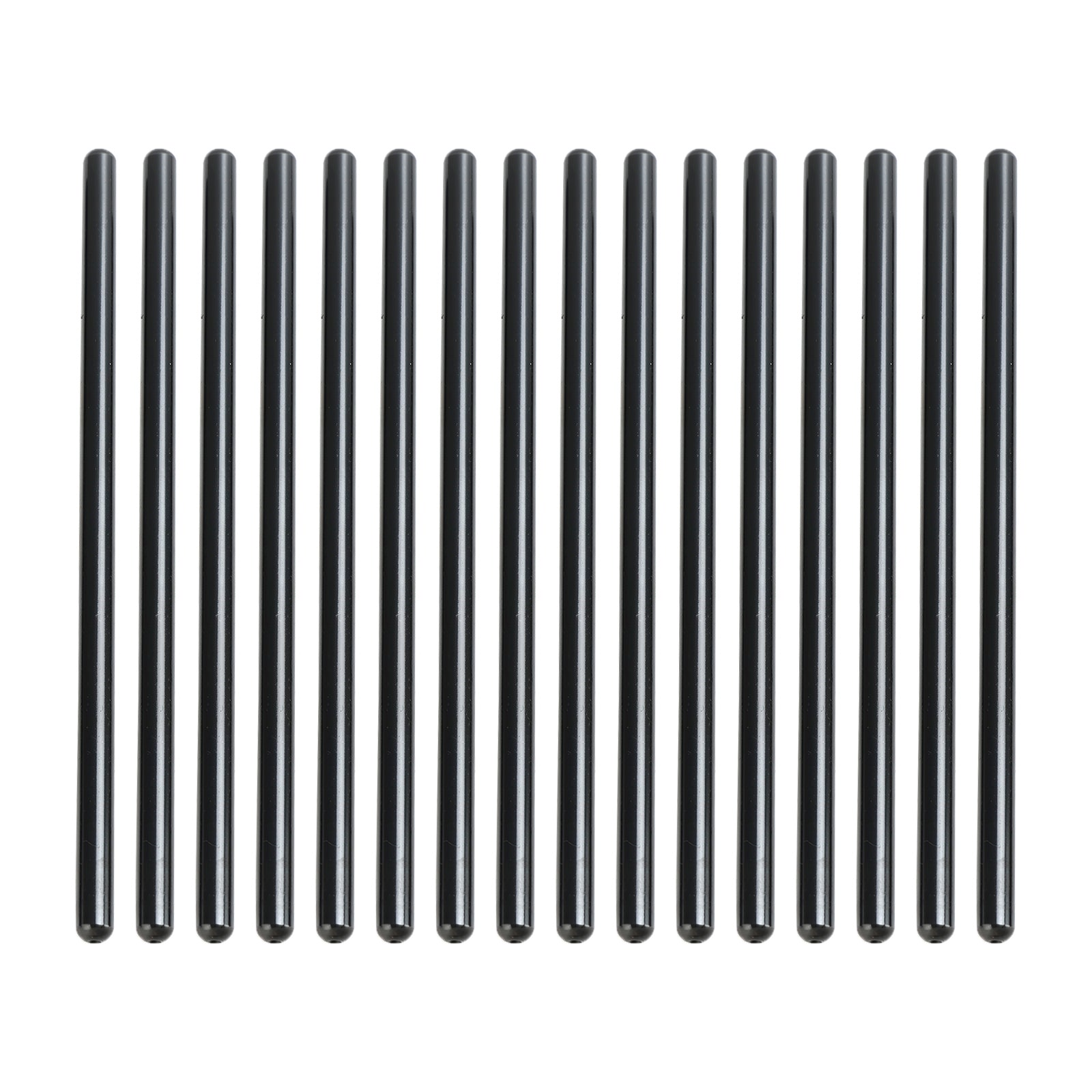

7.400" Chromoly One Piece Pushrods, 5/16" Diameter, And .080" WAL
TCS45993 Chevy LS Timing Cover Gaskets:
Chevy LS Engine Timing Cover Gaskets
Unsurpassed Quality You Can Trust
Includes Gaskets And Seals For Timing Chain And Water Pump Replacement Job
Chevrolet Performance Parts 12557840 Harmonic Balancer Bolt:
High Quality Steel Construction
Hex Head Style
16Mm X 2.0 Thread Size
4.055" Underhead Length
16Pcs 12482063 Viton Valve Seals:
Valve Type:Intake And Exhaust
Engines:LS1 LS2 LS4 LS6 LQ4 LQ9 LM7 L59 LR4 LM4 L33 L76
Fitment Type:Direct Replacement
Lifters Specs:
Manufacturer Part Number: 12499225
Oem Part Number: 12551163 12596365
Fits: 1997-2016 Chevy 5.3 5.7 6.0 LS1 LS2 LS3 LS7 LS6 LQ4 LQ9 LY5 LY6 LM7
For : Non- AFM Engines
Package Include:
1 X E1840P Camshaft
16 X Matching Springs Set
1 Set Of Gaskets
1 X Bolt
16 X Pushrods
16 X LS7 Lifters
Shipping Information:
Free Quick Shipping
Delivery Time: 3-7 business days.
